I thought we'd settled this ages ago

the kicker is that no one has really focused on what sort of variable is involved
which is the basis for what “BYREF” is even going to affect

a VALUE type passed BYVAL gets a COPY of the VALUE - you cant change the original VALUE
a REFERENCE type passed BYVAL gets a copy of the REFERENCE - you cant change the original REFERENCE - but you CAN change the properties of the thing it refers to ! This is obvious when you pass an instance of a class. Of course you can change that instances properties

Now pass byref

a VALUE type passed BYREF gets a REFERENCE to the VALUE - you CAN change the original VALUE
a REFERENCE type passed BYREF gets a REFERENCE to the REFERENCE - you can chnage the original REFERENCE

its pretty simple

but you have to talk about the what sort of variable it is (value or reference) to be able to talk about byref properly

And ARRAYS are a REFERENCE type

you can, usually, nil reference types

strings are actually reference types BUT implemented in a way thats totally invisible inside Xojo itself
but not in a plugin

Arrays though you CAN nil and the fact they are references types is discernible in Xojo

dim a() as integerdim b() as integer
if a is b then
  break
end if

a = b

if a is b then
  break
end if

1 Like

I understand this, but I also understand why it is confusing. Without exposure to C and machine language, I don’t think it’s obvious why a value type is different than a reference type.

var width, height as integer
var dimensions as size

Why are width and height value types and dimensions a reference type? Why wouldn’t they all be value types? Or all reference types? This distinction must seem kind of mysterious and arbitrary if how it actually works in memory is hidden from you. Knowing they are different types doesn’t really explain why, so it’s hard to get intuition about it. And it doesn’t help that the page on ByRef only mentions arrays in the context of it not being supported on Android.

Absolutely
In reality there are reasons why but they won’t make any sense in a Xojo context

  • its allocated on the heap vs the stack - uh ??? what ???
  • the amount of memory it requires - which isnt relevant or exposed in Xojo
  • can I change its overall size at runtime ?

In Xojo most of the difference can be explained by “Did you use NEW to create it or not ?”

Anything “new’d” is a reference type - except for arrays :stuck_out_tongue:
And arrays are as well simply because they are, or can be, unbounded & change size

There’s no way in Xojo to say an Array is some fixed size (skipping their use in structures which ISNT the same at all)

And so a reference type makes the MOST sense for that use case

1 Like
dim a() as integer
a.append 1
break
fooByVal(a)
break
fooByRef(a)
break

sub fooByVal (anarray() as integer)

   dim b() as integer
   b.append 456

   anarray = b

   break

end sub

sub fooByRef (byref anarray() as integer)

   dim b() as integer
   b.append 456

   anarray = b

   break

end sub

the code above produces the following in the debugger

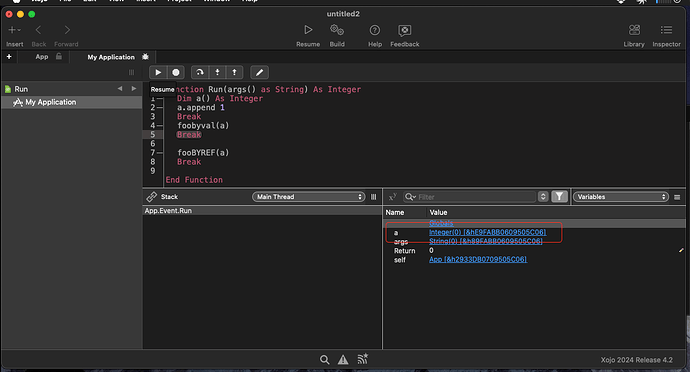

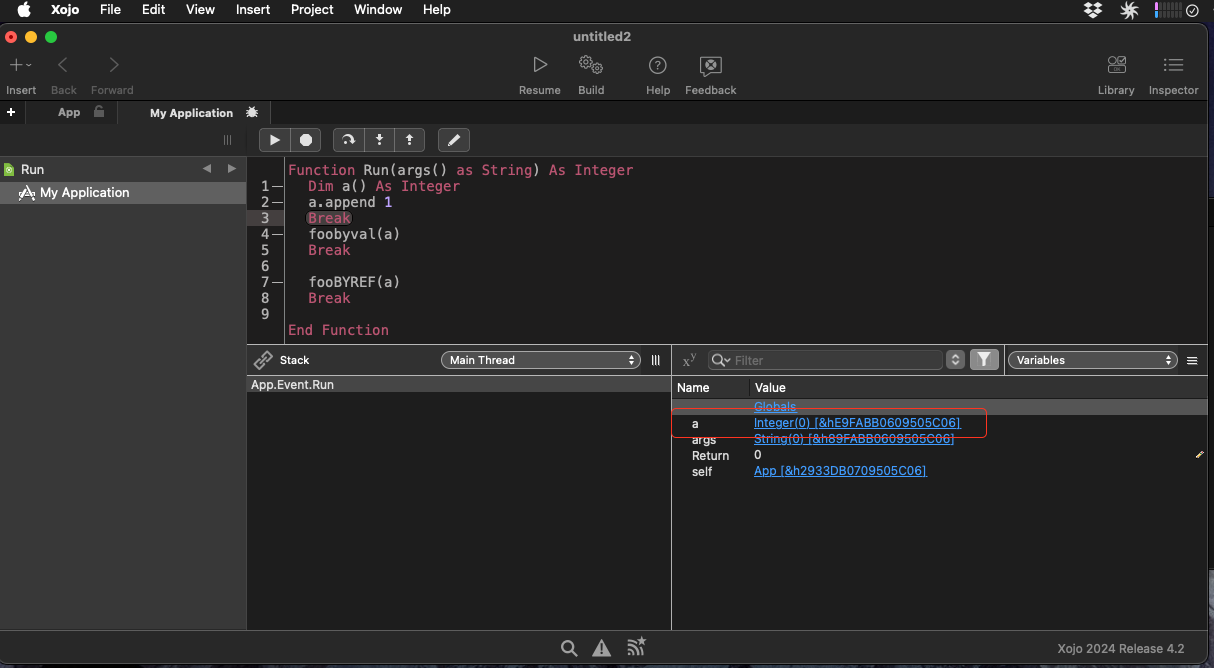

A() is reference with ID E9FABB0609505C06

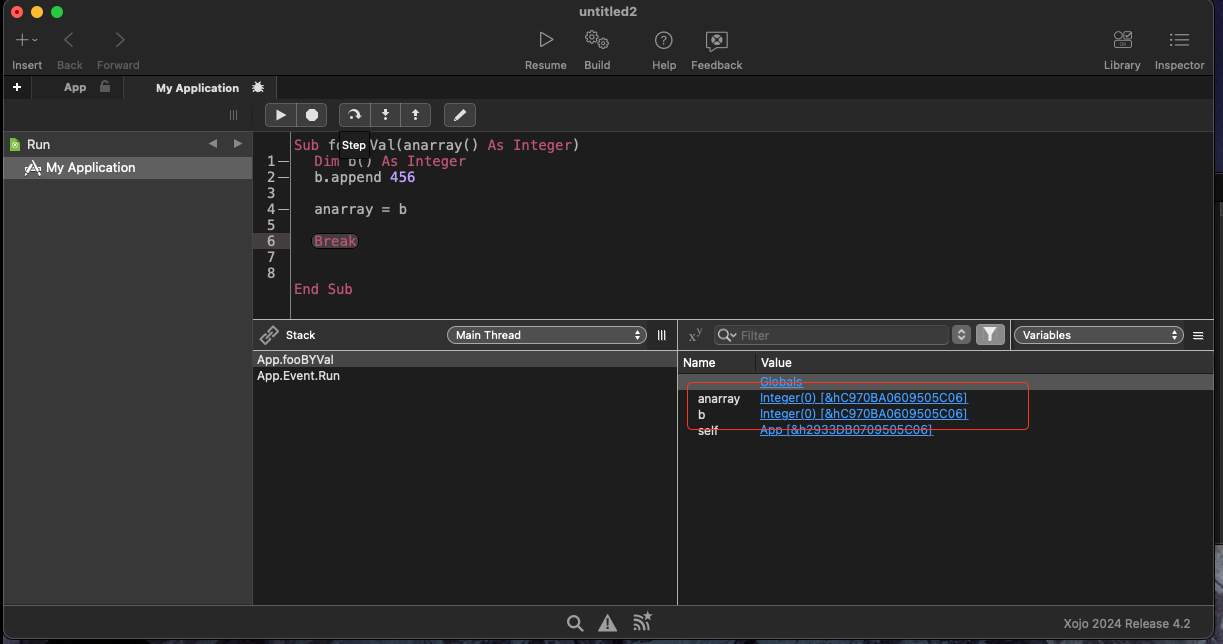

anarray (the original A() passed in is altered to now refer to the same array as B)
and has an ID of C970BA0609505C061 (NOT the same as it was originally)

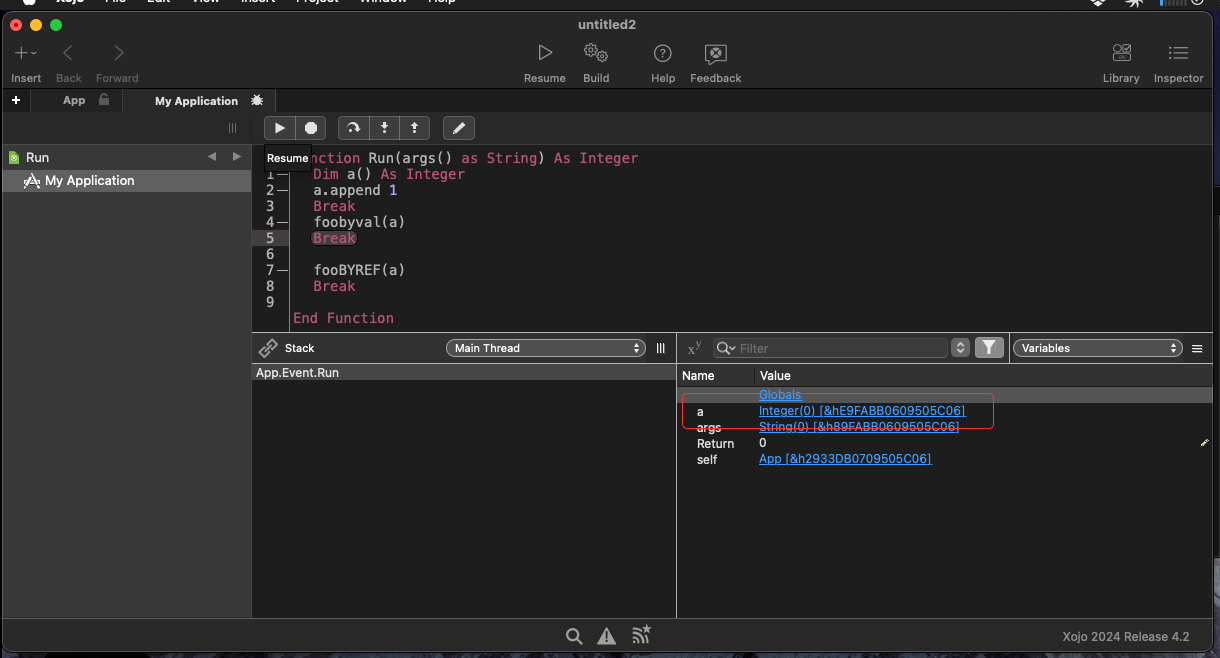

exited the method and A() once again has reference ID E9FABB0609505C06 back to what it was before the method was run

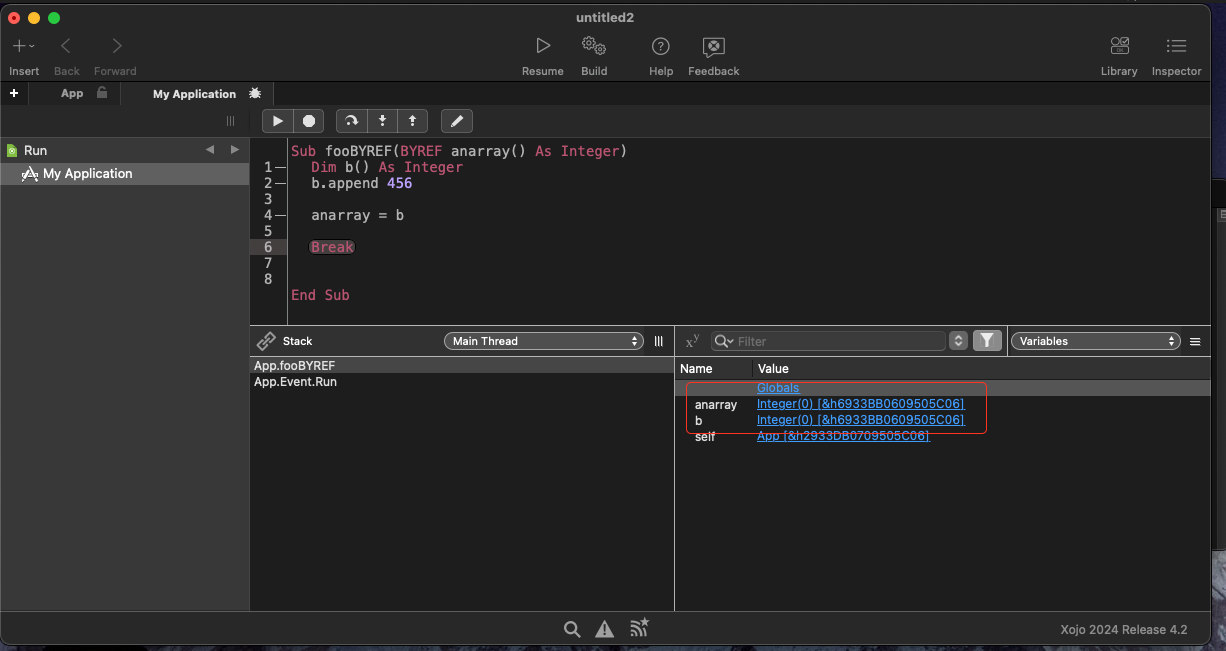

AnArray, which is A() passed in, now refers to the same array as B
One with ID 6933BB0609505C06 (NOT what was passed in at all)

We have exited the method and VOILA !!! The change we made in the method to make A() refer to a different array has been retained ! It still refers to the array with ID 6933BB0609505C06

the trick is what sort of variable is passed in - a VALUE type or a REFERENCE type

Arrays are reference types so BYREF means you get a reference to a reference and you CAN change what the reference refers to

2 Likes

i don’t know about that. i think everyone who learned any compiled language was exposed to this concept, at some point, since it’s implemented in so many languages, including those that predate c.

in fact, i can think of several modern, interpreted-only languages that have passing by value or by reference, as well. of course the vocabulary and the symbols that languages choose has much to do with how easy a topic is to grasp - in this case we could just as easily say that we are passing the original or passing a copy. then, somewhere, several paragraphs later, we could either explain all the detail or reference materials that discuss it.

Swift takes this a bit farther.. and it took some getting used to

func foo(x : Int) {
    x=x+1
} //Cannot assign to value: 'x' is a 'let' constant

func foo(x : inout Int) {
    x=x+1
} // same as Xojo byRef...

1 Like

right but “passing a copy” … of WHAT ?

people confuse “passing a copy” with “a copy of the DATA” but thats not correct and often you see people think they can pass an array into a method, modify it, and the original from the caller is untouched
And are surprised when thats NOT the case

It all comes back to knowing the difference between value & reference types

Right
But thats NOT illegal in Xojo because the passed in parameter is effectively a local variable so you can assign to it
The only difference is whether or not any local changes are, or are not, passed back to the caller

That was my point… in Xojo it becomes a local variable, but in Swift it becomes a local constant

different languages
different choices about how to handle that

Neither is more right than the other
Xojo isnt Swift
And Swift isnt Xojo

but after nearly 30 years I wouldnt expect Xojo to change to be like Swift
or Swift change to be like Xojo

I was’t trying to say Swift was more or less right than Xojo …. unlike those that insist Java is more right than everything…. My point was to show how it was different

Indeed I wasnt saying you were

Just that the designers of each language decided to make different decisions about how to handle that use case

And then you get languages like C++ & Rust that made different decisions again about how to indicate the “local constant behaviour” like Swift has

Atb the end I said also: For Apple and iOS I would, if the app has not to be cross platform, always use Swift/Swift UI. Why? While this would be the best method. But unlike you I am not programming for the apple world alone so I need to… And yes, looking from Xojo: it is much better.

Constants in some programming languages can be misleading too defining just a constant reference to a value, allowing reference types to be modified.

off: didn’t inout originate in pascal?

don’t get me started on constants that aren’t “constants”, because they are references/pointers/handles.

Probably Fortran….

intent(inout)

i’m so old that i don’t even think intentwas part of the language when i learned it.

did fortran ever add reserved words? if you’re not familar, at least when i learned it, fortran keywords weren’t reserved, so you could use them as variables, too. if i remember it,

if (eq.eq.eq) else=if*then-else

I learned fortran (FORTRAN IV to be exact) in the mid-late 70s… Don’t recall intent.

  • karen
1 Like

Came in the 90th if I remember correct. Wasn’t that the stuff with the dummy arguments??? No Idea :slight_smile:
