Animated Textures on a Scenekit SCNBox

I am tinkering with Scenekit in Swift, and can make most of the shapes with static textures on each side.

However unlike SpriteKit which has tile animation, Scenekit does not, I have some that “works” but the texture doesn’t 100% fill the side of the box. there is a border of a few pixels all around it

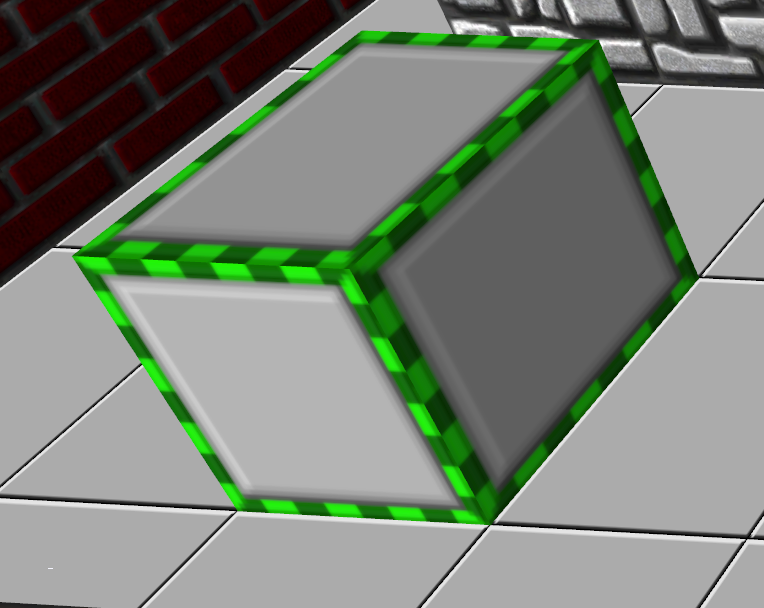

this is what I want

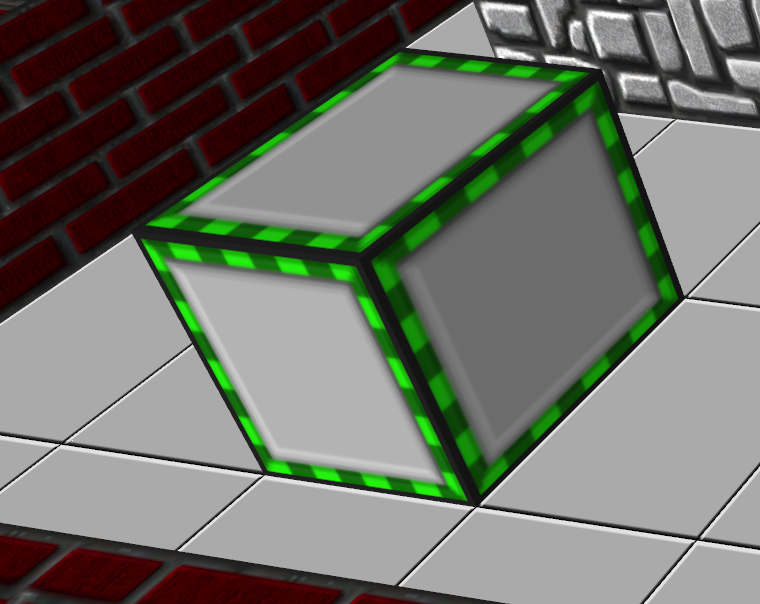

This is what I Get

the green bars chase each other, the animation works, just the border

this is the current code

private func getAnimatedTexture(_ tile:String) -> [SCNMaterial] {
    let mult : CGFloat = 2.55 // no sure why this is needed, but it is
    let skScene        = SKScene(size: CGSize(width:  wallSizeH*mult, height:  wallSizeH*mult))
    skScene.scaleMode  = .resizeFill
    let sprite         = SKSpriteNode(imageNamed: "frame1")
    sprite.position    = CGPoint(x: skScene.size.width/2, y: skScene.size.height/2)
    skScene.addChild(sprite)

    // Animate with a sequence of textures
    let frames         = ["\(tile)1", "\(tile)2", "\(tile)3","\(tile)4"].map { SKTexture(imageNamed: $0) }
    let animation      = SKAction.repeatForever(SKAction.animate(with: frames, timePerFrame: 0.3))
    sprite.run(animation)
    //
    let texture1              = SCNMaterial()
    texture1.diffuse.contents = skScene
    // FRONT, RIGHT, BACK, LEFT, TOP, BOT [don't waste animation on bottom
    return [texture1,texture1,texture1,texture1,texture1,getColor(255,0,0)[0]]
}

note : if I change Mult the texture grows/shrinks, but I can’t figure why I need that, or what the “correct” value would be

1 Like

dunno why, but it looks like 2.40 gives a decent result
